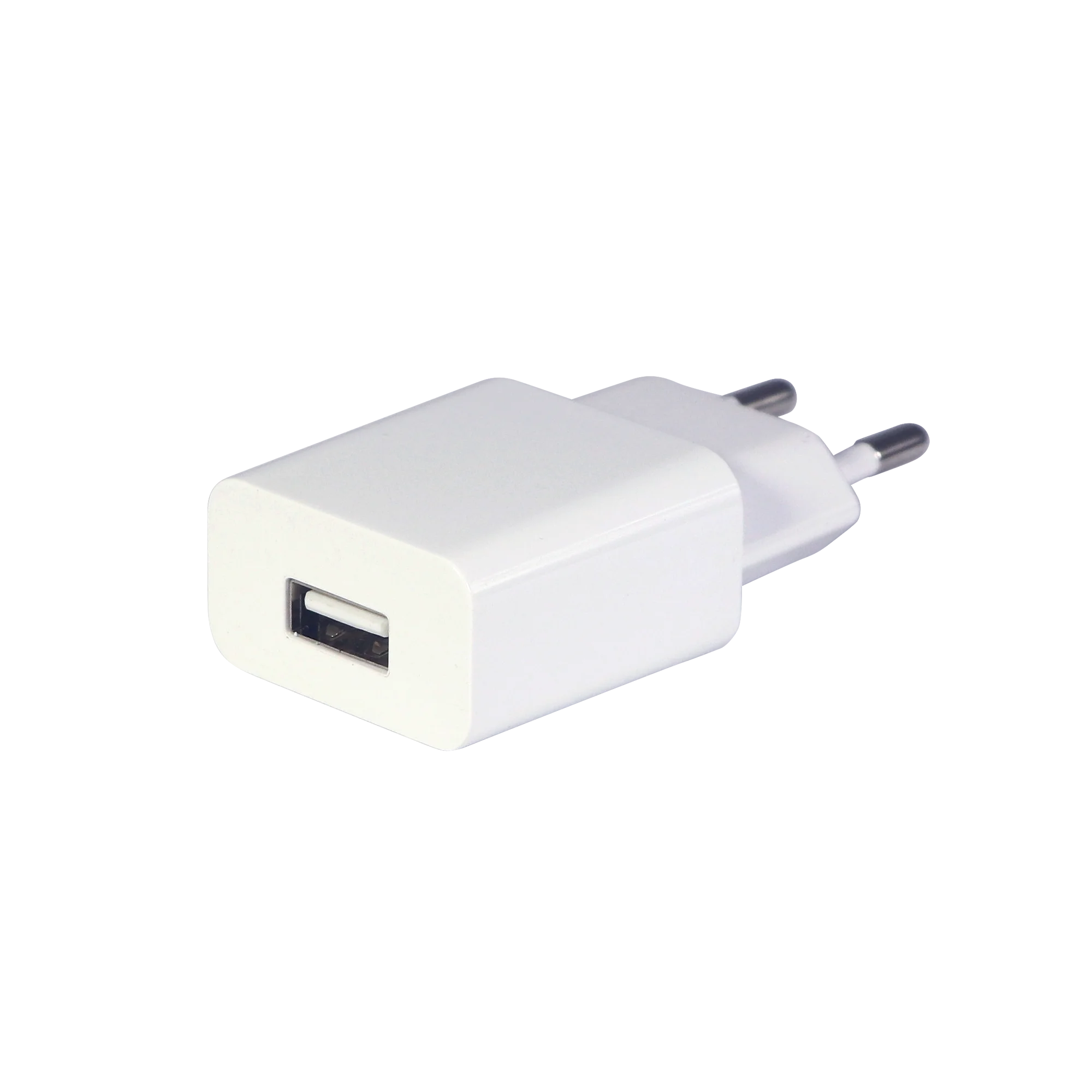

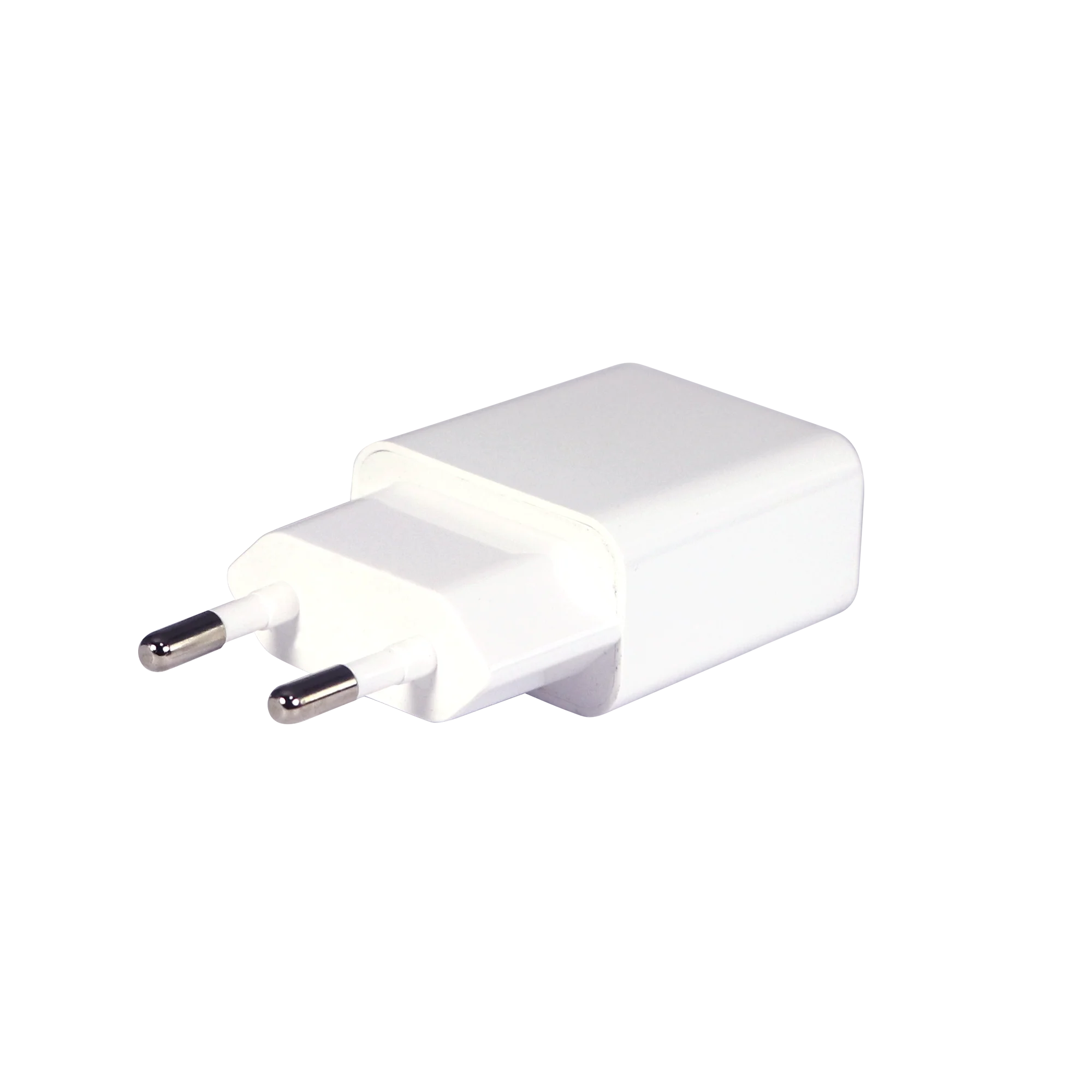

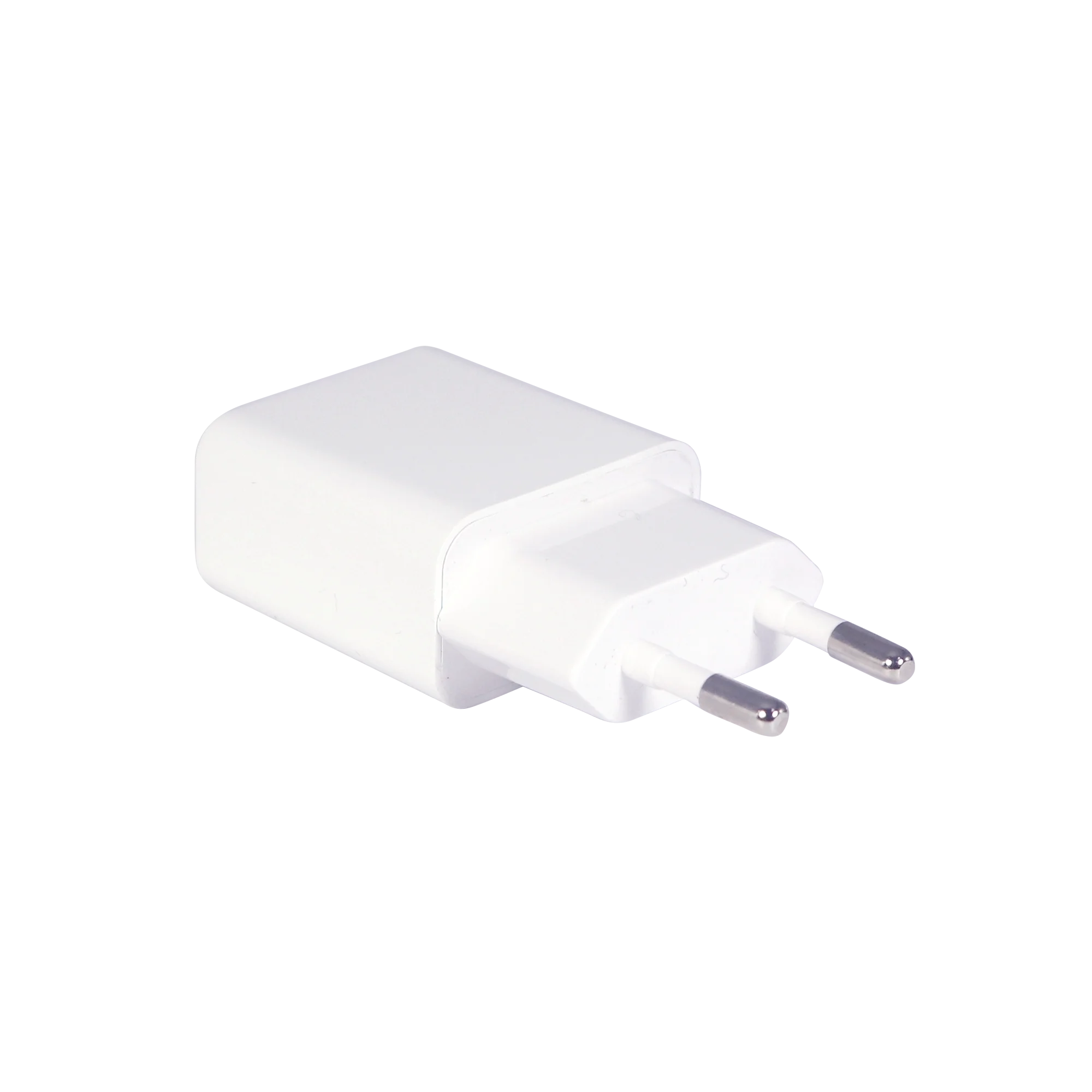

Chinese Manufacturer High Quality cellphone charger USB 5v 2a ac dc power adapter CE, cUL, ROHS approval

  • 1000 - 2999 Pieces
    $1.69
  • >=3000 Pieces
    $1.56
Socket Standard:
EU/AU/UK/US
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
OBSUN
Model Number:
XXXYYY
Type:
Electric
More Key words:
cell phone charger
Input:
100-240V AC
Frequency:
50-60Hz
Output:
5V 2A
Warranty:
2 years
Dimensions:
53*29*29mm
Connection:
Plug in
Plug:
EU UK US AU
Safety:
CE, CEC, UL CUL, FCC, SAA, GS, CB
Usage:
Mobile Phone Charger
Use:
Mobile Phone
Supply Ability
Supply Ability:
25000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
PE Bag or White Box + ctn for usb wall charger
Port
SZ/HK



Company Information



ABP International Limited is a Hong Kong joint-venture that established in 2001,with a leading standard power supply manufacturers that located in Mainland.Our product lines include AC/DC switching power supplies,battery chargers,regulated power supply,AC cord......



These power supplies are available in wattages from 5W to 960W and carry UL, CSA, CE, CCC, CB, BS, GS, PSE, SAA, FCC, MEPS, CEC, E-mark and comply with ROHS, REACH and WEE. Most of our power supply products meet Energy Star ratings and other nationally recognized efficiency levels.



It is our promise to provide top quality, affordable price products and reliable after sales service to our customers worldwide. We are looking forward to cooperating with you on both our ODM and your OEM orders.



Product Description

  cell phone charger




Applications:

* Mobile Phone Charger

* Blue Tooth Headset Charger

* PDA,MP3,Portable Equipment ect



Features:

* Universal Input 100-240V AC 50/60Hz

* High efficiency :V

* Short Circuit Protection,OVP,OCP

* Cabinet Color Optional

* Light Weight & Compact



Environment Specifications:

* Working temperature: 0℃-40℃

* Storage temperature: -10℃-70℃

* Humidity: 5%-95% Non-condensing



Safety Approval:

* UL, FCC, CEC, CE, GS, EUP, CB,SAA, C-Tick,MEPS,PSE,KC, 3C



Efficiency :

* Energy star IV & V



Electrical Specifications :

* Output Voltage: 3-30V DC

* Output Current :100-1200mA

* Power :1-7.5 Watt

* Ripple & Noise: 1% of Output Voltage



Typical parameters



NO

Model No.

Voltage(V)

Current(Ma)

Ripple&Noise(MV)

Efficiency(115V/230V)

1

SAW-0500500

5

500

50

V

2

SAW-0500800

5

800

50

V

3

SAW-0501000

5

1000

50

V

4

SAW-0501200

5

1200

50

V

5

SAW-0600500

6

500

50

V

6

SAW-0600800

6

800

50

V

7

SAW-0601000

6

1000

50

V

8

SAW-0750800

7.5

800

50

V

9

SAW-0900500

9

500

50

V

10

SAW-0900600

9

600

50

V

11

SAW-1200500

12

500

50

V





GENERAL SPECIFICATIONS

Safety Compliance:

UL, cUL, CE, CEC, FCC, SAA, GS, CB

Size

53*29*29mm

Weight:

35 grams

Cooling:

Free air convection

Construction:

Impact resistant thermo-plastic enclosure case

INPUT SPECIFICATION

Input Voltage:

Input Voltage: rating 100-240VAC

Input Connector:

EU, UK, US, AU as shown

Input Frequency:

47-63Hz. 50Hz/60Hz nominal

EMI:

Meet EN 55022 or FCC Class B

Efficiency

CEC-V/ERP/MEPS

No-load Standby Power

<0.3W

Agency Approvals

UL, FCC, PSE, CEC, CE, AV/CE, CB, C-Tick, CCC, MEPS

MTBF

50,000 hours per MIL-HDBK-217

OUTPUT SPECIFICATION

Output Voltage:

5.0 Volts

Output Current:

0-1.0 Amps fully regulated

Output Wattage:

0-6 Watts typical

Line Regulation:

0.1% typical

Load Regulation:

±5% typical

Noise & Ripple:

100mV peak to peak

Overload Protection (OLP)

Fully protected against output overload or short circuit. OLP is

set at about 120-150% of the rated continuous output.

Output Connector:

5.5 mm OD x 2.1 mm ID

Output Polarity

Center Positive

Output Cord

6 foot, 2 conductor 22 AWG wire

Working Temperature

0°C to +40°C

Storage Temperature

-20°C to +60°C



Factory image.jpg





FAQ



What kinds of payment methods and price term?

 We accept Paypal, West Union, T/T usually. But we also accept L/C under special situation for the products.





 Can you supply OEM or ODM service?

We can supply OEM/ODM service of any charger or power adapter absolutely!





Which shipment available?

Normally, we ship goods by sea,air and express. Special requirement also acceptable

By sea to your nearest sea port

By air to your nearest air port

 By express(UPS,DHL.FEDEX,TNT...) to your door



 May I get free sample?

Normally, our samples for charger are free. If the sample quantity is large, it will be charged. However, the sample fee will be refunded when customer place bulk orders for that item.



 Warranty?



ABPguaranty products against defects are found to be defective under normal use within 2 years.





Packaging & Shipping

 PE Bag & White Box are our standard packing ways, other variants are also possible. Please, contact our sales team for further discussion. Thank you!
